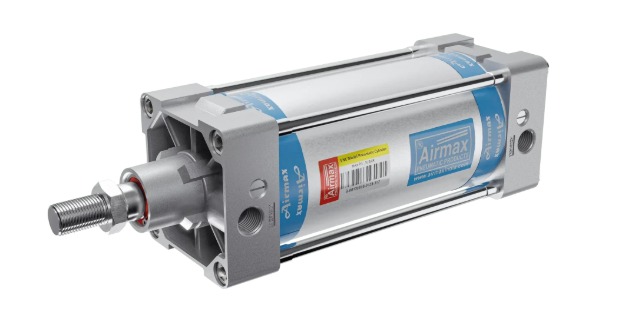

Best company Airman air flow control solution. VNC Model Pneumatic Cylinder.
Product Details
Bore (mm) | 32 l 40 l 50 l 63 l 80 l 100 l 125 l 160 l 200 l 250 |
Piston Rod | 12 l 16 l 20 l 20 l 25 l 25 l 32 l 40 l 40 l 50 |
Stroke | 25mm to 500mm |
Model | VNC |
Seals | Buna – N / Viton / P.U. / Hi – Nitril (Viton on Request) |
Pressure | 0.5 ~ 10 kg/cm² |
Temperature | -20°~ 80°C Max. |
Tube | Aluminums Hard Anodized |
End Cover | Aluminum Pressure Die Cast |
Mounting | Airman Pneumatic Valves & Accessories. Female Clevise, Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting |
Note | For viton 0°C to 180°C temperature & For Non standard or longer stroke cylinders (Up to 2000mm) available on request Airmax Make “VNC” Model (Round Tube & Tie Rod) Pneumatic Cylinders as per ISO 15552 & VDMA 24562 Standard. Airman industrial valve fittings indifferent product Feature,Double Ended, Single Acting. N/O, N/C, Double Acting., Magnetic, Adjustable Cushioning. |

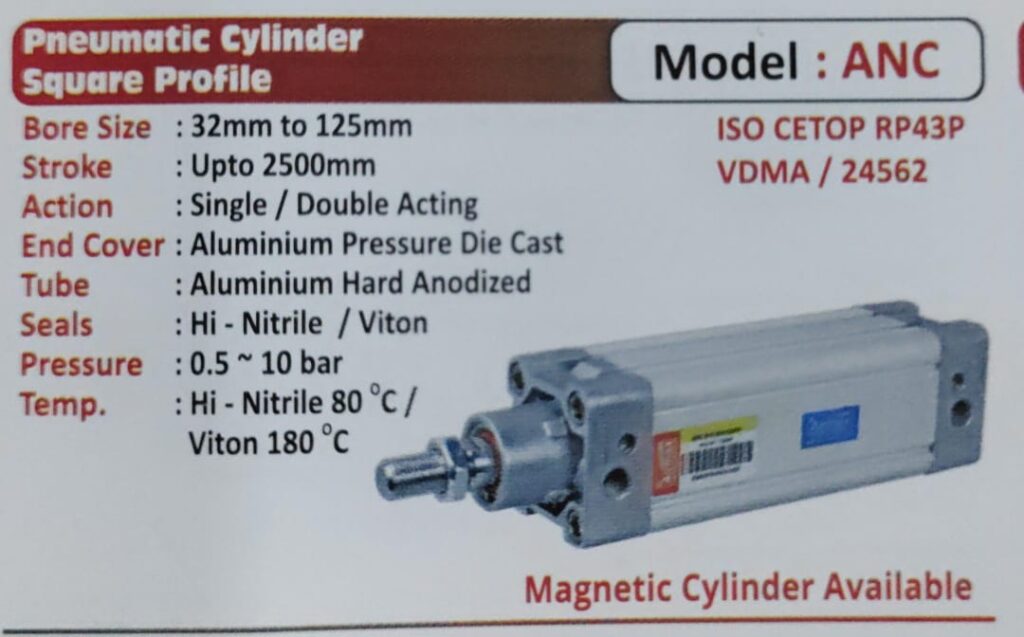

ANC Square Pneumatic Cylinder
inProduct Details
Bore (mm) | 32 l 40 l 50 l 63 l 80 l 100 l 125 |
Piston Rod | 12 l 16 l 20 l 20 l 25 l 025 l 032 |
Stroke | 25mm to 500mm (Up to 2000mm) |
Model | ANC |
Seals | Buna – N / Viton / P.U. / Hi-Nitrile (Viton on Request) |
Pressure | 0.5 ~ 10 kg/cm² |
Temperature | -20°C ~ 80°C Max. |
Tube | Aluminium Hard Anodized |
End Cover | Aluminium Pressure Die Cast |
Female Clevise | Wall Bracket Mounting | Eye Rod Mounting | Fork Mounting Clevis Foot Bracke | Clevis Foot Mounting | Foot Mounting | Front & Rear Trunnion Mounting | Male Clevis | Pivot Mounting | Rod End Aligner Mounting Front/Rear Flange Mounting | Wall Bracket Mounting Female & Male Clevis | Center Trunnion Mounting in Airman air flow control solutions | |
Media | Compressed Air – Filtered – Lubricated |
Note | High temperature with Viton 0°C to 180°C available |
Round Body Pneumatic Air Cylinder (AX102 Model)
Product Details
Bore (mm) | 32 l 40 l 50 l 63 l 80 l 100 l 125 |
Piston Rod | 12 l 16 l 20 l 20 l 25 l 25 l 32 |
Stroke | 25mm to 1000mm (Up to 2000mm) |
Pressure | 0.5 ~ 10 kg/cm² |
Temperature | 80˚C |
Mounting | Female Clevis, Airman Pneumatic Valves & Accessories and Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting |
Medium | Compressed air – filtered – lubricated.Airmax Make “AX102” – Model Air Cylinder as per ISO 6413 & CETOP RP43P Standard. feauture.
|

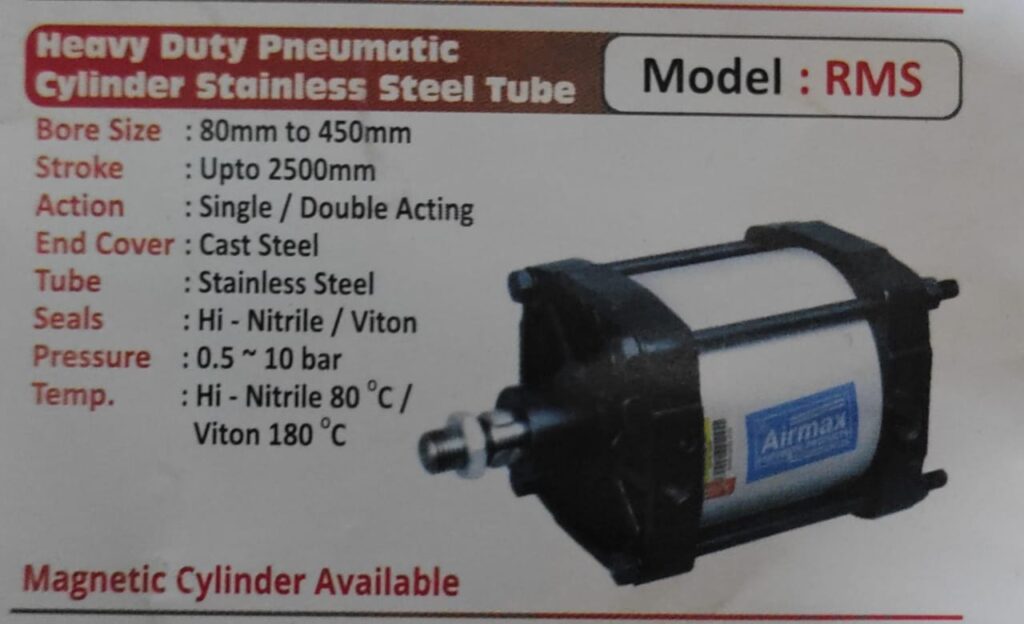

RMS Model Heavy Duty Pneumatic Cylinder
Product Details
| Bore (mm) | 125 l 150 l 200 l 250 l 300 l 350 l 400 l 450 |
|---|---|
| Piston Rod | 032 l 032 l 038 l 051 l 051 l 056 l 056 l 070 |
| Stroke | Up to 2500mm |
| Seals | Buna – N / P.U. / Hi – Nitril (Viton on Request) |
| Pressure | Up to 12 kg/cm² |
| Temperature | 80°C / 100°C / 180°C Max. |
| Tube | Stainless Steel / M.S. Tube (M.S. Seamless Tube with Hard Chrome Plated ) |
| End Cover | C.I. |
| Mounting | Center Trunnion Mounting, Pivot Mounting, Eye Rod Mounting, Fork Mounting, Center Lug Mounting, Center Trunnion Mounting (Adjustable), Pivot Bracket & Pin Mounting, Flange Mounting, Front/Rear Trunnion Mounting (Fixed), Front/Rear Fixed Trunnion Mounting Top, Foot Bracket Mounting, Center Trunnion Mounting (Adjustable). Airman Pneumatic Valves & Accessories “RMS” Model Heavy Duty Pneumatic Air Cylinders in SS Tube & Tie Road. Excellent Features
|
Airman Pneumatic Valves & Accessories. AX502 Model
Product Details
Bore (mm) | · 100 l 125 l 150 l 200 l 250 l 300 l 450 |
Piston Rod | 032 l 032 l 032 l 038 l 051 l 051 l 070 |
Stroke | 25mm to 1000 mm (Up to 2000mm) |
Seals | Buna – N / P.U. / Hi – Nitril (Viton on Request) |
Pressure | Up to 12 kg/cm² |
Temperature | 80°C / 100°C / 180°C Max. |
Tube | M.S. Tube (MS. Honed Tube with Hard Chrome Plated) |
End Cover | C.I. |
Mounting | Rod Eye Mounting with Hexagon Nut, Rod Clevis (FORK) Mounting with Hexagon Nut & Pin, Foot Bracket Mounting, Flange Mounting, Pivot Mounting (Rear Trunnion Mounting), Front / Rear Trunnion Mounting (FIXED), Front / Rear Fixed Trunnion on Top, Center Lug Mounting, Pivot Bracket & Pin Mounting, Center Trunnion Mounting, Center Trunnion Mounting (Adjustable / New Model) |

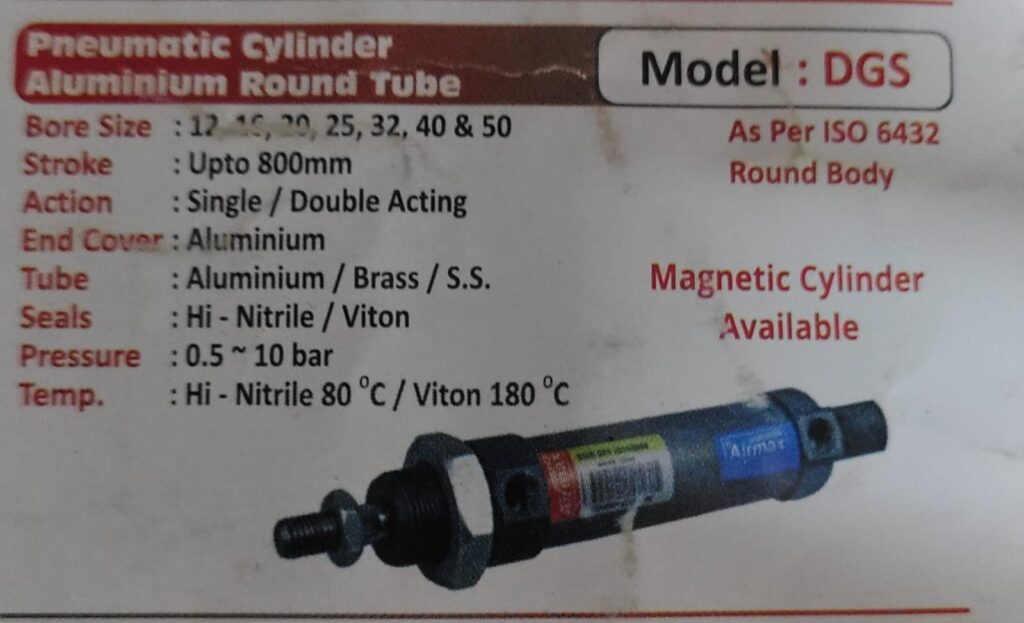

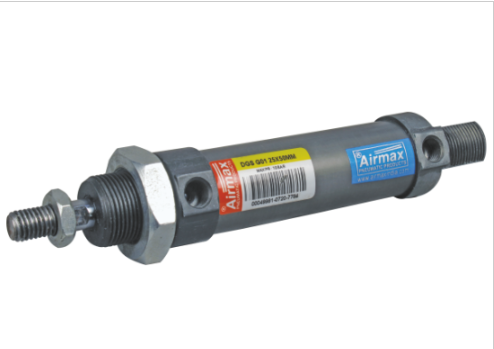

Magnetic Pneumatic Cylinder (DGS Model)
Product Details
Bore (mm) | 12 l 16 l 20 l 25 |
Piston Rod | 06 l 08 l 08 l 10 |
Stroke | 25mm to 800mm |
Seals | Buna – N / P.U / Hi – Nitril (Viton on Request) |
Temperature | 80°C / 100°C / 180°C Max. |
End Cover | Aluminium Pressure Die Cast |
Mounting | Clevis Foot Mounting, Eye Rod Mounting, Foot Mounting, Fork Mounting, Rod End Aligner Mounting, Flange Mounting 1 Flange with Mounting Bolts |
Barrel | Aluminium Hard Anodized |
Airmax Make “DGS” Model Pneumatic cylinders.
- Double Ended
- Single Acting. N/O, N/C
- Double Acting.
- Magnetic
Airman Pneumatic Valves & Accessories.AX502 Model
Product Details
Bore (mm) | 16 l 20 l 25 |
Piston Rod | 06 l 08 l 10 |
Stroke | 25mm to 500 mm |
Valve Type | Double Acting |
Pressure | 0.5 to 9 kg |
Temperature | -10°C to 70°C |
Mounting | Clevis Foot Mounting, Eye Rod Mounting, Fork Mounting, Foot Mounting, Front & Rear Flange |
Oper. Speed | 50 ~ 500 (mm/sec) |
Port Size | M5, 1/8″ |
Media | Compressed Air |
Description ,Features ,The AX502 Model Pneumatic Cylinder by Airmax Pneumatics offers a 25mm to 500mm stroke, 0.5 to 9 kg pressure, and -10°C to 70°C temperature range. It features Buna-N, P.U., or Hi-Nitrile seals (Viton on request) and multiple mounting options. Perfect for automotive, pharmaceuticals, food processing, and textile industries, it ensures reliable performance and easy installation.
Learn about Magnetic Pneumatic Cylinder ensure precise motion control with reliable magnetic sensing technology.
AX 103 Single/Double Ended Pneumatic Cylinder
Product Details
Bore (mm) | 32 l 40 l 50 l 63 l 80 l 100 |
Piston Rod | 12 l 12 l 16 l 16 l 20 l 20 |
Stroke | 10mm to 80mm |
Seals | Buna – N / P.U / Hi – Nitril (Viton on Request) |
Pressure | 0.5 ~ 10 kg/cm² |
Temperature | 5°C to 60°C Max |
End Cover | Aluminum Pressure Die Cast |
Mounting | Female Clevis, Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting |
Barrel | Aluminums Hard Anodized |
Note | Viton Seals are available on Request for High Temperature |
SM Model Pneumatic Air Cylinder
Product Details
| Model | SM |
|---|---|
| Size | 200 X 50 mm |
| Shaft | EN8 Hard Chrome Plated |
| Seals | Buna – N ( Viton Available On Request) |
| Pressure | 10 Kg/cm² |
| Temperature | Upto 80°C |
| End Cover | Cast Iron |
| Barrel | Aluminium. Double Acting Design: Air can be applied on both ends to extend and retract the piston rod. Durable Build: Made with high-grade aluminum alloy for a lightweight yet sturdy construction. Adjustable Cushioning: Built-in end cushioning absorbs impact at the stroke’s end, reducing wear and noise. Custom Stroke Options: Available in various bore sizes and stroke lengths to fit your exact requirement. Smooth, Fast Operation: Ideal for high-speed, repetitive tasks. |
BSH Model Pneumatic Air Cylinder
Product Details
Model | BSH |
Size | 150 X 100 |
Shaft | EN8 Hard Chrome Plated |
Seals | Buna – N (Viton Available On Request) |
Pressure | 10 Kg/cm² |
Temperature | Upto 80°C |
End Cover | Cast Iron |
Barrel | Aluminium |
Durability Under Pressure: Withstands demanding work cycles and tough conditions.
- Repeatable Precision: Maintains smooth performance even after thousands of strokes.
- Easy Maintenance: Simple design allows for fast servicing and part replacement.
- Energy-Efficient: Performs with minimal air leakage and optimized pressure use.
- Safe & Reliable: Ideal for applications where control and strength are essential.
Client Tip:
If you’re managing operations where reliability, power, and durability are non-negotiable, the BSH Model Pneumatic Cylinder is your go-to choice. It’s especially suitable for automation systems where large forces and longer strokes are frequently required.

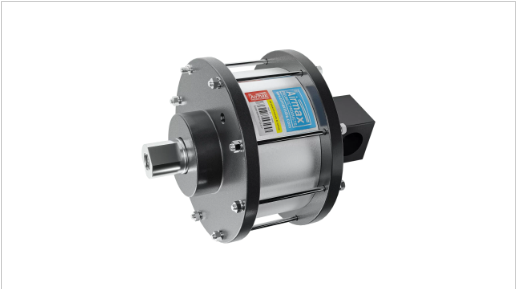

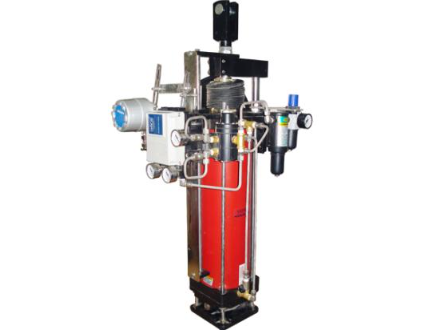

Pneumatic Power Cylinder
Pneumatic Power Cylinder – High Force, Clean Motion, Maximum Efficiency
A Pneumatic Power Cylinder is a heavy-duty industrial actuator designed to generate high linear force using compressed air. Unlike standard air cylinders, power cylinders are built to deliver greater output, making them ideal for tough applications like pressing, lifting, clamping, and automated heavy-duty movement.
Core Features at a Glance:
- High Force Output: Specifically engineered to deliver more power per stroke, using larger piston diameters and reinforced structure.
- Double Acting Mechanism: Enables movement in both directions for push-pull operations.
- Robust Body Design: Typically made with a cast iron or alloy steel body for durability under harsh industrial conditions.
- Integrated Cushioning: Smooth operation at stroke ends to reduce impact, noise, and wear.
- Custom Bore & Stroke Sizes: Wide range of specifications to match custom automation requirements.
How It Works:
The cylinder uses compressed air, which enters through one port and pushes the piston rod outward. Reversing the air supply retracts the rod. The internal force generated by the compressed air is significantly higher than that of general pneumatic cylinders, making it suitable for industrial automation tasks that require high torque or pressure, such as those involving Airman Pneumatic Valves & Accessories.
Where Pneumatic Power Cylinders Are Used:
- Metalworking and fabrication machines
- Hydraulic press replacements (air-based)
- Industrial clamping systems
- Material lifting and pushing mechanisms
- Automotive and packaging industries
- Valve operation in large pipelines
Client Benefits:
- Maximum Power with Minimal Maintenance: Achieve hydraulic-like force using clean, dry air—no oil, no mess.
- Fast & Responsive: Excellent for high-speed automation processes that require strength.
- Environment-Friendly: Pneumatic operation avoids hydraulic fluid leaks, spills, or disposal issues.
- Low Cost of Ownership: Fewer moving parts, longer operational life, and reduced servicing needs.
- Easy Integration: Can be connected to existing pneumatic control systems, PLCs, and sensors.
Why This Matters to Clients:
If your operation involves heavy-duty linear motion, but you want to avoid the complexities of hydraulic systems, a Pneumatic Power Cylinder is your solution. It provides the strength of hydraulics with the clean, low-maintenance advantages of pneumatics — perfect for modern industries aiming for speed, safety, and sustainability.

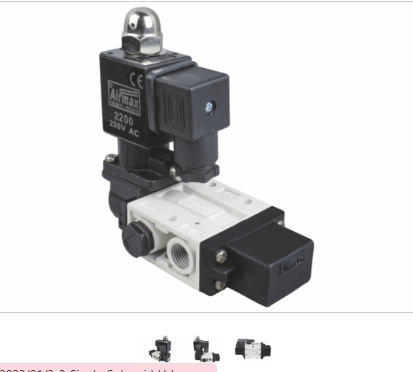

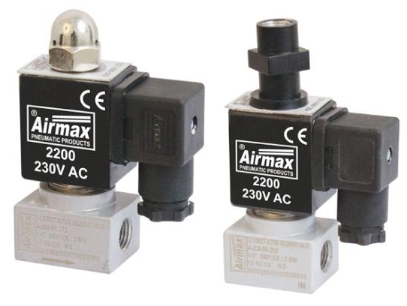

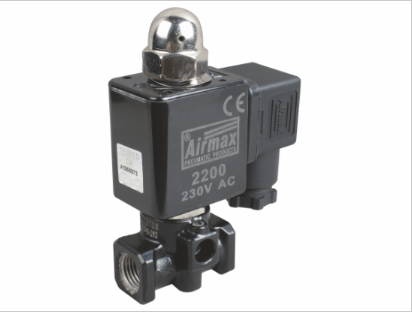

3/2 Way Single Solenoid Valve
Product Details
Model | 2ADSS-3 |
Size | 1/4”, 1/2” |
Body | Aluminium Anodized |
Seals | Nitrile |
Pressure | 1 to 10 Kg/Cm² |
Temperature | 5 to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
Coil Volt | 12V, 24V, 48V, 110V, 230V, (AC / DC) |
Duty Cycle | Continues Rated |
Protection | IP 65 Class F |
Connector | DIN 43650 Best company Airman air flow control solution.new product This 3/2-way single solenoid valve is designed to control the flow of air in a pneumatic system. Its compact design makes it suitable for a variety of applications. The valve is available in two sizes (1/4″ and 1/2″) and a variety of voltages (12V, 24V, 48V, 110V, and 230V) to meet your specific needs. In addition, the valve boasts a rated pressure of 1 to 10 Kg/Cm² and a rated temperature of 5 to 55°C for reliable performance
|
5/2 Way Single Solenoid Valve
Product Details
Model | 2ADSS-5 |
Size | 1/4”, 1/2” |
Body | Aluminium Anodized |
Seals | Nitrile |
Pressure | 1 to 10 Kg/Cm² |
Temperature | 5 to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
Coil Volt | 12V, 24V, 48V, 110V, 230V, (AC / DC) |
Duty Cycle | Continues Rated |
Protection | IP 65 Class F |
Connector | DIN 43650 B |
The 5/2 Way Single Solenoid Valve is a directional control valve that utilizes an electrical signal to control the flow of compressed air in a pneumatic system. Its compact design makes it suitable exclusively for pneumatic applications. The valve is available in two sizes, 1/4″ and 1/2″, and can withstand pressures ranging from 1 to 10 kg/cm².
It’s also offered in various coil voltages, including 12V, 24V, 48V, 110V, and 230V, to accommodate different electrical requirements. The valve features a fast response time of 15 milliseconds for activation and 25 milliseconds for deactivation.

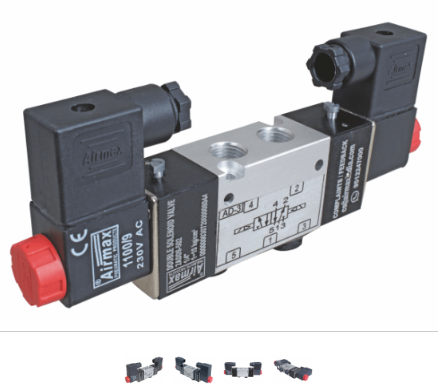

5/2 Way Double Solenoid Valve
Product Details
Model | 2ADDS – 5 |
Size | 1/4”,1/2” |
Body | Aluminium Anodized |
Seals | Nitrile |
Pressure | 1 to 10 Kg/Cm² |
Temperature | 5 to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
Coil Volt | 12V, 24V, 48V, 110V, 230V, (AC / DC) |
Duty Cycle | Continues Rated |
Protection | IP 65 Class F |
Connector | DIN 43650 B |
Airmax Pneumatics is a leading manufacturer, supplier, and exporter of 5/2 Way Double Solenoid Valves, used to control compressed air in pneumatic systems. Available in 1/4″ and 1/2″ sizes, these valves feature a pressure rating of 1 to 10 Kg/cm² and a temperature range of 5 to 55°C. They offer bubble-tight sealing, multiple coil voltage options, and a continuous duty cycle. With an IP65 rating for dust and water protection.
It’s important to note that the Ad-20 Series is considered a premium product line within the 5/2 Way Double Solenoid Valve category.
3/2 Way Hand Lever Valve Spring Return / Detent
Product Details
Model | 2AD-HR-4 |
Size | 1/4”, 1/2” |
Body | Aluminums Anodized |
Seals | Nitrile |
Pressure | 10 Kg/Cm² |
Temperature | 5 to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
The 3/2 Way Hand Lever Valve is a type of valve used to control the flow of compressed air in pneumatic systems. It is compact and has a maximum flow rate of 123 liters per minute. The valves are available in two sizes, 1/4 inch and 1/2 inch. They are also available in two different types, spring return and detent. The valves have a pressure rating of 10 kg/cm² and can be used in temperatures from 5 to 55 degrees Celsius.
Product Details
Model | 2AD-HR-4 |
Size | 1/4”, 1/2” |
Body | Aluminums Anodized |
Seals | Nitrile |
Pressure | 10 Kg/Cm² |
Temperature | 5 to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
The 3/2 Way Hand Lever Valve is a type of valve used to control the flow of compressed air in pneumatic systems. It is compact and has a maximum flow rate of 123 liters per minute. The valves are available in two sizes, 1/4 inch and 1/2 inch. They are also available in two different types, spring return and detent. The valves have a pressure rating of 10 kg/cm² and can be used in temperatures from 5 to 55 degrees Celsius.

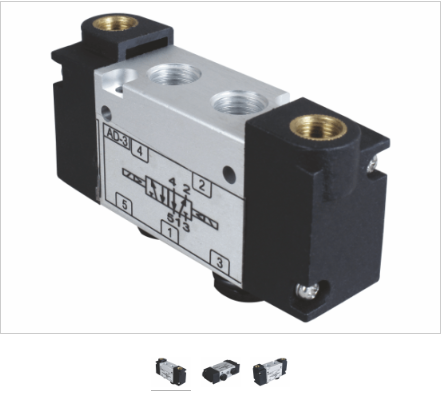

5/2 Way Double Pilot Valve
Product Details
Model | 2ADDP-5 |
Size | 1/4”, 1/2” |
Body | Aluminium Anodized |
Seals | Nitrile |
Pressure | 1 to 10 Kg/Cm² |
Temperature | 5 to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
Airmax’s High Quality 5-2 Way Double Pilot Valve Ad-20 Series is part of their premium AD-20 line, known for superior performance and durability. This valve is likely constructed with an aluminum extruded body with anodization for a compact design with maximum flow.
Let me know if you’d like me to find more information about the specific features or technical specifications of this valve.

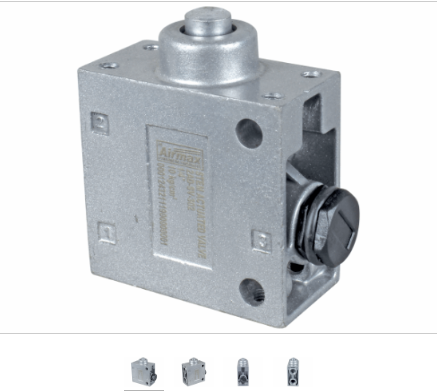

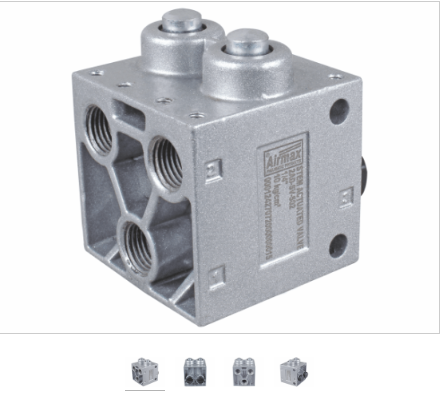

3/2 Way Stem Actuated Valve
Product Details
Model | 2AD-SV-302 (3/2) |
Size | ¼” |
Body | Aluminium Pressure Die Cast |
Shaft | EN 8 Hard Chrome Plated |
Seals | Hi – Nitrile |
Pressure | Upto 10 Kg/cm2 |
Temperature | Upto 55 °C (Max.) |
Leakage | Bubble Tight |
Media | Compressed Air (Use Filtered & Lubricated) |
Airmax Pneumatics manufactures compact and durable 3/2 way stem actuated valves used to control the flow of compressed air in pneumatic systems. These valves feature a poppet design and are actuated by a stem. They are available in a 1/4 inch size and can withstand a pressure of up to 10 kg/cm2. The valves have a maximum operating temperature of 55 degrees C and are bubble tight at leakage.
5/2 Way Stem Actuated Valve
Product Details
Model | 2AD-SV-502 (5/2) |
Size | 1/4″ |
Body | Aluminium Pressure Die Cast |
Seals | Hi – Nitrile |
Pressure | Upto 10 Kg/cm² |
Temperature | Upto 55 °C (Max.) |
Leakage | Bubble Tight |
Media | Compressed Air (Use Filtered & Lubricated) |
The 5/2 Way Stem Actuated Valve is a compact and durable valve, manufactured by Airmax in Ahmedabad, used to control the flow of compressed air in pneumatic systems. The valve has a poppet design, which allows for quick and efficient operation. It is also available in a variety of sizes and configurations to meet the needs of different applications.

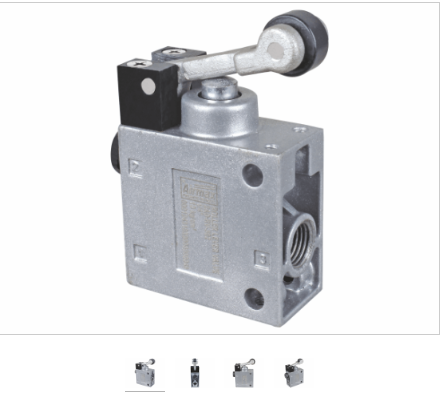

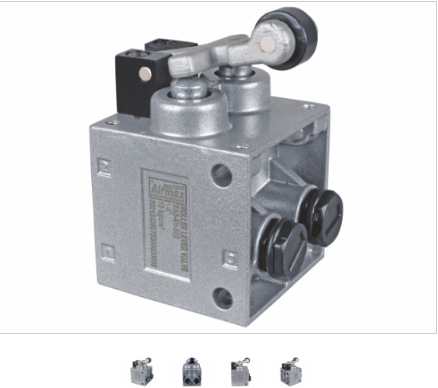

3/2 Poppet Type Roller Lever Valve
Product Details
Model | 2AD-RV-302 (3/2) |
Size | ¼” |
Body | Aluminium Pressure Die Cast |
Shaft | EN 8 Hard Chrome Plated |
Seals | Hi – Nitrile |
Pressure | Upto 10 Kg/cm2 |
Temperature | Upto 55 OC (Max.) |
Leakage | Bubble Tight |
Media | Compressed Air (Use Filtered & Lubricated) |
- The 3/2 Poppet Type Roller Lever Valve, manufactured by Airmax Pneumatic in Ahmedabad, India, is used to control the flow of compressed air in pneumatic systems. It is known for its compact and lightweight design, along with its durability. The valve is also easy to install and maintain, making it a great choice for a variety of applications. Compact Design
- Durable, Light Weight, Standard Grade MOC, Smart International Design Look, Epoxy Treated Surface, Replaceable & Repairable Parts
5/2 Poppet Type Roller Lever Valve
Product Details
Model | 2AD-RV-502 (5/2) |
Size | ¼” |
Body | Aluminium Pressure Die Cast |
Seals | Hi – Nitrile |
Pressure | Upto 10 Kg/cm² |
Temperature | Upto 55 °C (Max.) |
Leakage | Bubble Tight |
Media | Compressed Air (Use Filtered & Lubricated) The 5/2 Poppet Type Roller Lever Valve is a directional control valve used in pneumatic systems. It is manufactured by Airmax in Ahmedabad, India, and is also available for supply and export worldwide. The valve is known for its compact and lightweight design, made of aluminum for durability. It has a maximum pressure of 10 kg/cm² and a maximum temperature of 55 °C. Notably, the valve is bubble-tight, meaning there is no leakage. |
3/2 Way Poppet Type Finger Lever Valve
Product Details
Model | 2AD-LV-502 (5/2) |
Size | ¼” |
Body | Aluminium Pressure Die Cast |
Shaft | EN 8 Hard Chrome Plated |
Seals | Hi – Nitrile |
Pressure | Upto 10 Kg/cm2 |
Temperature | Upto 55 OC (Max.) |
Leakage | Bubble Tight |
Media | Compressed Air (Use Filtered & Lubricated) |
Airmax manufactures, supplies, and exports 5/2 Poppet Type Finger Lever Valves in India and worldwide. These valves are used to control the flow of compressed air in pneumatic systems and are available in a variety of sizes and configurations, making them suitable for a wide range of applications.
Some of the key features of these valves include their compact design, durable construction, and easy operation. Additionally, the Ad-20 Series is a premium product line that offers even higher quality and performance.
CJ 2/2 Way Direct Acting Solenoid Valve Normally Closed
Product Details
Model | CJDS – 02 – 202 / CJDS – 03 – 202 |
Size | ¼” BSP |
Body | Aluminium Pressure Die Cast |
Seals | Hi – Nitrile |
Pressure | 10 Kg/cm² |
Temperature | Upto 80 °C |
Leakage | Bubble Tight |
Media | Air (Filtered & Lubricated) |
Coil Volt | 12V, 24V, 48V, 110V, 230V (AC/DC) |
Orific | 2 MM |
Note | CJDS – 03 – 202 Model with Manual Over Ride |
At Airmax Pneumatics, we manufacture, supply, and export high-quality CJ-2 2 Way Direct Acting Solenoid Valves, which are normally closed. These valves are designed for precise control in a wide range of applications, ensuring reliable performance in both industrial and commercial environments.
The RM Series of these solenoid valves is a mid-budget option, providing an excellent balance of quality and affordability. If you require a premium product, we recommend exploring our AD-20 Series, which offers superior features and performance. For those looking for a more cost-effective solution, the AMV Series is an ideal choice, delivering reliable functionality at a lower price point. Whether you’re in India or looking for global solutions, Airmax Pneumatics ensures top-notch products to meet your needs.
2/2 Way Direct Acting Solenoid Valve
Product Details
Model | AJDS-08-202 l AJDS-09-202 l AJDS-10-202 |
Size | 1/4″ BSP |
Body | Aluminium Press. Die Cast |
Pressure | 7 Kg/cm² | 10 Kg/cm² | 20 Kg/cm² |
Temperature | Up to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
Coil Volt | 24V, 48V, 110V, 230V DC The 3/2 Way Direct Acting Solenoid Valves are available in different models, sizes, pressure, temperature and other specifications. These valves are used for compressed air (filtered and lubricated) and have a bubble tight leakage. They can withstand temperatures up to 55 degrees C. The coils are available in 24V, 48V, 110V and 230V DC. |
3/2 Way Direct Acting Solenoid Valve
Product Details
Model | AJDS-08-202 l AJDS-09-202 l AJDS-10-202 |
Size | 1/4″ BSP |
Body | Aluminium Press. Die Cast |
Pressure | 7 Kg/cm² | 10 Kg/cm² | 20 Kg/cm² |
Temperature | Up to 55°C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
Coil Volt | 24V, 48V, 110V, 230V DC The 3/2 Way Direct Acting Solenoid Valves are available in different models, sizes, pressure, temperature and other specifications. These valves are used for compressed air (filtered and lubricated) and have a bubble tight leakage. They can withstand temperatures up to 55 degrees C. The coils are available in 24V, 48V, 110V and 230V DC. |
3/2 Way Direct Acting Solenoid Valve
Product Details
Model | 2ARMSS – 3 |
Size | 1/4″, 1/2″ |
Body | Aluminum Press. Die Cast |
Seals | Nitrile |
Pressure | 2.5 to 10 Kg/cm² |
Temperature | 80˚C |
Leakage | Bubble Tight |
Media | Compressed Air (Filtered & Lubricated) |
Coil Volt | 12V, 24V, 48V, 110V, 230V, (AC / DC) |
Duty Cycle | Continues Rated |
Protection | IP 65 (flameproof available) |
Connector | DIN 43650 A The 3/2 Way Single Solenoid Valve is used to control the flow of compressed air. It comes in a variety of models, sizes, and technical specifications. The valve has a variety of coil voltages, pressures, and temperatures. It is also rated for continuous duty and has an IP 65 protection rating. |
RMS MODEL Pneumatic cylinder
Take your pneumatic systems to the next level with Airmax, a trusted name in precision air control solutions. Designed to deliver unmatched performance, durability, and efficiency, Airmax pneumatic products are engineered for industries that demand consistency and reliability.
Whether you’re in manufacturing, automotive, pharmaceuticals, packaging, or textiles, Air max offers a wide range of pneumatic components—from air filters, regulators, and lubricators to valves, actuators, and fittings. Each product is crafted with industrial-grade materials, ensuring long service life and minimal maintenance.
With a commitment to quality and innovation, Air max helps optimise airflow, reduce energy loss, and improve the overall performance of your machinery.
Take your pneumatic systems to the next level with Airmax, a trusted name in precision air control solutions. Designed to deliver unmatched performance, durability, and efficiency, Airmax pneumatic products are engineered for industries that demand consistency and reliability.
Whether you’re in manufacturing, automotive, pharmaceuticals, packaging, or textiles, Air max offers a wide range of pneumatic components—from air filters, regulators, and lubricators to valves, actuators, and fittings. Each product is crafted with industrial-grade materials, ensuring long service life and minimal maintenance.
With a commitment to quality and innovation, Air max helps optimise airflow, reduce energy loss, and improve the overall performance of your machinery.
Take your pneumatic systems to the next level with Airmax, a trusted name in precision air control solutions. Designed to deliver unmatched performance, durability, and efficiency, Airmax pneumatic products are engineered for industries that demand consistency and reliability.
Whether you’re in manufacturing, automotive, pharmaceuticals, packaging, or textiles, Air max offers a wide range of pneumatic components—from air filters, regulators, and lubricators to valves, actuators, and fittings. Each product is crafted with industrial-grade materials, ensuring long service life and minimal maintenance.
With a commitment to quality and innovation, Air max helps optimise airflow, reduce energy loss, and improve the overall performance of your machinery.
Add Your Heading Text Here
Designed for durability and performance, the RMS Model Pneumatic Cylinder is engineered with top-tier features to support demanding industrial applications. Built using a stainless steel barrel, this cylinder offers a stroke length of up to 2500 mm, making it ideal for heavy-duty operations.
Key Features:
Wide Range of Bore Sizes – Versatile configurations to meet varied industrial needs.
Robust Stainless Steel Barrel – Ensures durability and performance for strokes up to 2500 mm.
Adjustable Cushioning – Customizable at both ends for precise motion control.
Flexible Mounting Options – Adaptable to different setups for easy integration.
Manufactured with precision in Ahmedabad, India, Airmax Pneumatics Ltd. combines innovation with quality to deliver world-class pneumatic solutions. Proudly aligned with the Make in India initiative.
🌐 Visit: www.airmaxindia.com
Air Regulator
Airmax Pneumatics Ltd. is a trusted name in the world of industrial automation, offering a wide range of high-performance pneumatic components built for reliability, durability, and precision. Proudly “Made in India”, our products are engineered to meet global standards and deliver consistent results across diverse industrial applications.
From pneumatic cylinders to valves, FRLs, and fittings, every product undergoes rigorous quality checks and testing to ensure optimum functionality under the toughest operating conditions.
Whether you’re in manufacturing, automotive, pharmaceuticals, packaging, or textiles, Air max offers a wide range of pneumatic components—from air filters, regulators, and lubricators to valves, actuators, and fittings. Each product is crafted with industrial-grade materials, ensuring long service life and minimal maintenance.
With a commitment to quality and innovation, Air max helps optimise airflow, reduce energy loss, and improve the overall performance of your machinery.
Air Regulator

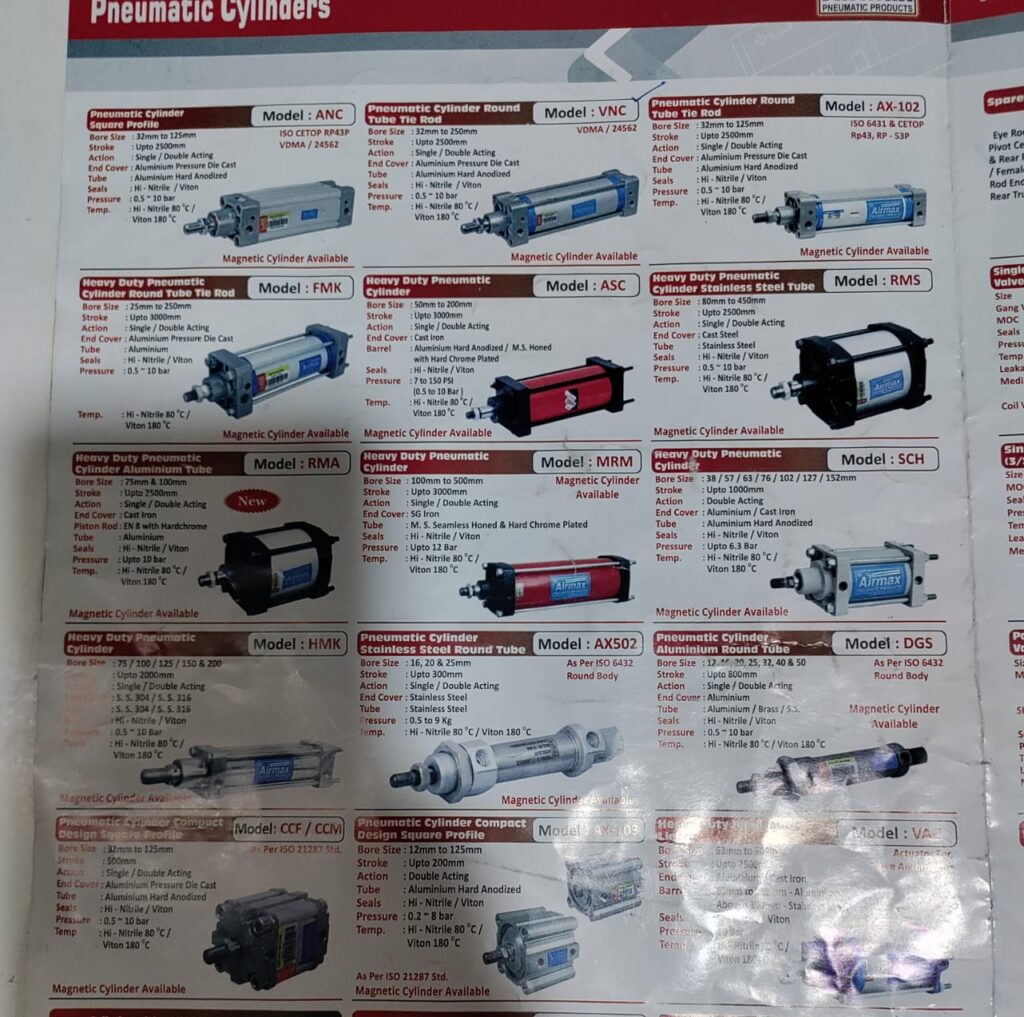

Model: RMA | Round Tube Cylinder
Stroke: Up to 300mm
Pressure: Up to 10 bar
Material: Aluminium Die Cast
Seal Options: NBR / PU / Viton
Temp Range: -20°C to 80°C
Magnetic Cylinder Available
Model: MRM | Heavy Duty Round Cylinder
Bore Size: 100mm to 500mm
Stroke: Up to 1250mm
Material: Aluminium / Steel – Hard Chrome Plated
Seal: PU / NBR / Viton
Temp: Nitrile 80°C / Viton 180°C
✅ Magnetic Cylinder Available
✅ Model: SCH | Compact Heavy Duty
Bore: 32 / 40 / 50 / 63 / 76 / 102 / 125 mm
Material: Aluminium Cast
Seal: NBR / PU / Viton
Temp: Up to 180°C
✅ Magnetic Cylinder Available
✅ Model: HMK | Pneumatic Cylinder – New
Bore Size: 100 to 300mm
Stroke: Up to 2500mm
Barrel: SS / Hardchrome
Seal: Nitrile / Viton
Heavy-Duty Built for Durability
✅ Model: AX502 | Stainless Steel Round Body
Standard: ISO 6432
Bore: 16, 20, 25mm
Stroke: Up to 300mm
End Cover: SS
Temp: -20°C to 180°C
Magnetic Cylinder Available
Model: DGS | Aluminium Round Tube
Bore: 12 to 80mm
Stroke: Up to 600mm
Seal: Nitrile / Viton
ISO 6432 Standard
Magnetic Cylinder Available

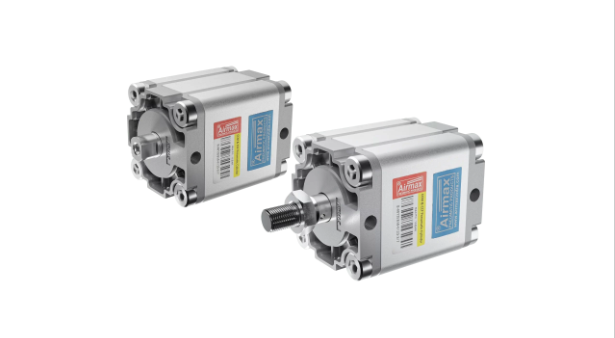

Model: CCF / CCM | Compact Cylinder (Round Profile)
Stroke: 12 to 125mm
Material: Aluminium
As per ISO 21287
Magnetic Cylinder Available
Model: AX-103 | Compact Cylinder (Square Profile)
Bore Size: 12 to 125mm
Stroke: Up to 250mm
Material: Aluminium Hard Anodized
ISO 21287 Standard
✅ Magnetic Cylinder Available
✅ Model: VAC | Heavy-Duty Pneumatic Linear
Stroke: Up to 2500mm
Barrel: Aluminium / Stainless Steel
✅ Special for Valve Automation
✅ Model: DPX-IN | Duplex Pneumatic Cylinder
Design: With Independent Piston Rod
✅ Two Cylinders in One – Compact & Efficient
✅ Model: SM-BSH | Double Acting Pneumatic Cylinder
Bore: 200 / 250 / 300mm
Stroke: Up to 1250mm
Material: AluminiumBuilt for High Load & Precision Work
Would you like this converted into a catalog PDF or designed for a carousel-style Instagram post?

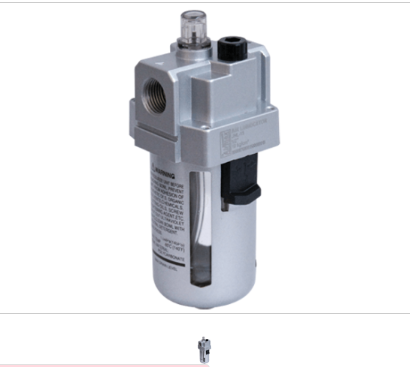

Pneumatic Air Lubricator
Product Details
Model | JHR |
Size | 1/4″, 3/8″, 1/2″, 3/4″, 1″ |
Body | Aluminium Pressure Die. Cast |
Seals | NBR |
Pressure | 10 Kg/cm² |
Temperature | 50˚C |
Media | Compressed Air |
Download Inquiry
With our Air Regulator, you can ensure accurate airflow management. It is intended for best performance and life expectancy. This regulator is designed to meet ISO 6953-1 standards and includes a pressure gauge for reliable monitoring.
Since 1992, it has been available for supply and export around the world, serving sectors that require constant and reliable air regulation. Whether you’re improving your system or starting over, this high-quality Air Regulator surpasses international regulations.
While our Premium Series Air Regulator offers exceptional performance for demanding applications, you can also explore our Standard Series Air Regulator for a reliable, cost-effective solution for less intensive
From pneumatic cylinders to valves, FRLs, and fittings, every product undergoes rigorous quality checks and testing to ensure optimum functionality under the toughest operating conditions.
Whether you’re in manufacturing, automotive, pharmaceuticals, packaging, or textiles, Air max offers a wide range of pneumatic components—from air filters, regulators, and lubricators to valves, actuators, and fittings. Each product is crafted with industrial-grade materials, ensuring long service life and minimal maintenance.
With a commitment to quality and innovation, Air max helps optimise airflow, reduce energy loss, and improve the overall performance of your machinery.
Thanks for sharing the image! Based on the flyer you uploaded, here’s a 100% unique, human-written content draft that highlights Airmax Pneumatics Ltd. and the products shown:
Airmax Pneumatics Ltd. – Precision Pneumatics for Powerful Performance
Airmax Pneumatics Ltd. stands at the forefront of industrial automation, delivering top-tier pneumatic products built for performance, reliability, and durability. Trusted across India and beyond, Airmax is known for engineering excellence and a deep commitment to innovation in pneumatic solutions.
Our Featured Product Range Includes:
Solenoid Valves
Designed for precision control of air flow in automation systems. Available in a variety of configurations for different operational needs.
Pneumatic Directional Control Valves
Built to last, these valves ensure consistent and responsive directional control in machinery.
Manual & Mechanical Valves
Ideal for systems where manual intervention is required, providing accuracy and ease of use.
FRL Units (Filter, Regulator, Lubricator)
Essential for clean and dry air in pneumatic systems, improving component lifespan and system efficiency.
Quick Exhaust & Flow Control Valves
Optimized for fast cycling and pressure control, enhancing machine productivity.
Moisture Separators & Auto Drain Valves
Protect your equipment from moisture damage with high-quality separators and fully automatic draining systems.
Pressure Switches & Sensors
Ensure accurate monitoring of air pressure for safety and automation feedback.
Silencers & Mufflers
Reduce noise in pneumatic exhausts while maintaining optimal airflow.
Each product from Airmax reflects a commitment to engineering precision, rugged quality, and long-term reliability—perfect for industries like packaging, food processing, pharmaceuticals, textiles, and manufacturing.
Why Airmax Pneumatics?
- ISO Certified Manufacturing
- Decades of Industry Experience
- In-House R&D for Continuous Innovation
- Nationwide Support & Service Network
- Available on Social Media & YouTube for Product Demos
Scan the QR codes on our catalog or visit:
www.airmaxindia.com
www.moistureseparators.com
Connect with Airmax – Where Quality Meets Automation
Experience world-class pneumatic solutions designed for efficiency, precision, and performance. Whether you’re an OEM, distributor, or industry professional, Airmax Pneumatics Ltd. is your trusted partner in industrial automation.
Let me know if you want me to turn this into a brochure, social media caption set, or SEO blog content!
Designed for durability and performance, the RMS Model Pneumatic Cylinder is engineered with top-tier features to support demanding industrial applications. Built using a stainless steel barrel, this cylinder offers a stroke length of up to 2500 mm, making it ideal for heavy-duty operations.
Key Features:
Wide Range of Bore Sizes – Versatile configurations to meet varied industrial needs.
Robust Stainless Steel Barrel – Ensures durability and performance for strokes up to 2500 mm.
Adjustable Cushioning – Customizable at both ends for precise motion control.
Flexible Mounting Options – Adaptable to different setups for easy integration.
Manufactured with precision in Ahmedabad, India, Airmax Pneumatics Ltd. combines innovation with quality to deliver world-class pneumatic solutions. Proudly aligned with the Make in India initiative.
🌐 Visit: www.airmaxindia.com
Thanks for sharing the image! Based on the flyer you uploaded, here’s a 100% unique, human-written content draft that highlights Airmax Pneumatics Ltd. and the products shown:
Airmax Pneumatics Ltd. – Precision Pneumatics for Powerful Performance
Airmax Pneumatics Ltd. stands at the forefront of industrial automation, delivering top-tier pneumatic products built for performance, reliability, and durability. Trusted across India and beyond, Airmax is known for engineering excellence and a deep commitment to innovation in pneumatic solutions.
Our Featured Product Range Includes:
Solenoid Valves
Designed for precision control of air flow in automation systems. Available in a variety of configurations for different operational needs.
Pneumatic Directional Control Valves
Built to last, these valves ensure consistent and responsive directional control in machinery.
Manual & Mechanical Valves
Ideal for systems where manual intervention is required, providing accuracy and ease of use.
FRL Units (Filter, Regulator, Lubricator)
Essential for clean and dry air in pneumatic systems, improving component lifespan and system efficiency.
Quick Exhaust & Flow Control Valves
Optimized for fast cycling and pressure control, enhancing machine productivity.
Moisture Separators & Auto Drain Valves
Protect your equipment from moisture damage with high-quality separators and fully automatic draining systems.
Pressure Switches & Sensors
Ensure accurate monitoring of air pressure for safety and automation feedback.
Silencers & Mufflers
Reduce noise in pneumatic exhausts while maintaining optimal airflow.
Each product from Airmax reflects a commitment to engineering precision, rugged quality, and long-term reliability—perfect for industries like packaging, food processing, pharmaceuticals, textiles, and manufacturing.
Why Airmax Pneumatics?
- ISO Certified Manufacturing
- Decades of Industry Experience
- In-House R&D for Continuous Innovation
- Nationwide Support & Service Network
- Available on Social Media & YouTube for Product Demos
Scan the QR codes on our catalog or visit:
www.airmaxindia.com
www.moistureseparators.com
Connect with Airmax – Where Quality Meets Automation
Experience world-class pneumatic solutions designed for efficiency, precision, and performance. Whether you’re an OEM, distributor, or industry professional, Airmax Pneumatics Ltd. is your trusted partner in industrial automation.
Let me know if you want me to turn this into a brochure, social media caption set, or SEO blog content!
Thanks for sharing the image! Based on the flyer you uploaded, here’s a 100% unique, human-written content draft that highlights Airmax Pneumatics Ltd. and the products shown:
Airmax Pneumatics Ltd. – Precision Pneumatics for Powerful Performance
Airmax Pneumatics Ltd. stands at the forefront of industrial automation, delivering top-tier pneumatic products built for performance, reliability, and durability. Trusted across India and beyond, Airmax is known for engineering excellence and a deep commitment to innovation in pneumatic solutions.
Our Featured Product Range Includes:
Solenoid Valves
Designed for precision control of air flow in automation systems. Available in a variety of configurations for different operational needs.
Pneumatic Directional Control Valves
Built to last, these valves ensure consistent and responsive directional control in machinery.
Manual & Mechanical Valves
Ideal for systems where manual intervention is required, providing accuracy and ease of use.
FRL Units (Filter, Regulator, Lubricator)
Essential for clean and dry air in pneumatic systems, improving component lifespan and system efficiency.
Quick Exhaust & Flow Control Valves
Optimized for fast cycling and pressure control, enhancing machine productivity.
Moisture Separators & Auto Drain Valves
Protect your equipment from moisture damage with high-quality separators and fully automatic draining systems.
Pressure Switches & Sensors
Ensure accurate monitoring of air pressure for safety and automation feedback.
Silencers & Mufflers
Reduce noise in pneumatic exhausts while maintaining optimal airflow.
Each product from Airmax reflects a commitment to engineering precision, rugged quality, and long-term reliability—perfect for industries like packaging, food processing, pharmaceuticals, textiles, and manufacturing.
Why Airmax Pneumatics?
- ISO Certified Manufacturing
- Decades of Industry Experience
- In-House R&D for Continuous Innovation
- Nationwide Support & Service Network
- Available on Social Media & YouTube for Product Demos
Scan the QR codes on our catalog or visit:
www.airmaxindia.com
www.moistureseparators.com
Connect with Airmax – Where Quality Meets Automation
Experience world-class pneumatic solutions designed for efficiency, precision, and performance. Whether you’re an OEM, distributor, or industry professional, Airmax Pneumatics Ltd. is your trusted partner in industrial automation.
Let me know if you want me to turn this into a brochure, social media caption set, or SEO blog content!
